Model Whirlpool F9157^0 – Common Parts & Diagrams
04 - BODY
06 - OVEN DOOR

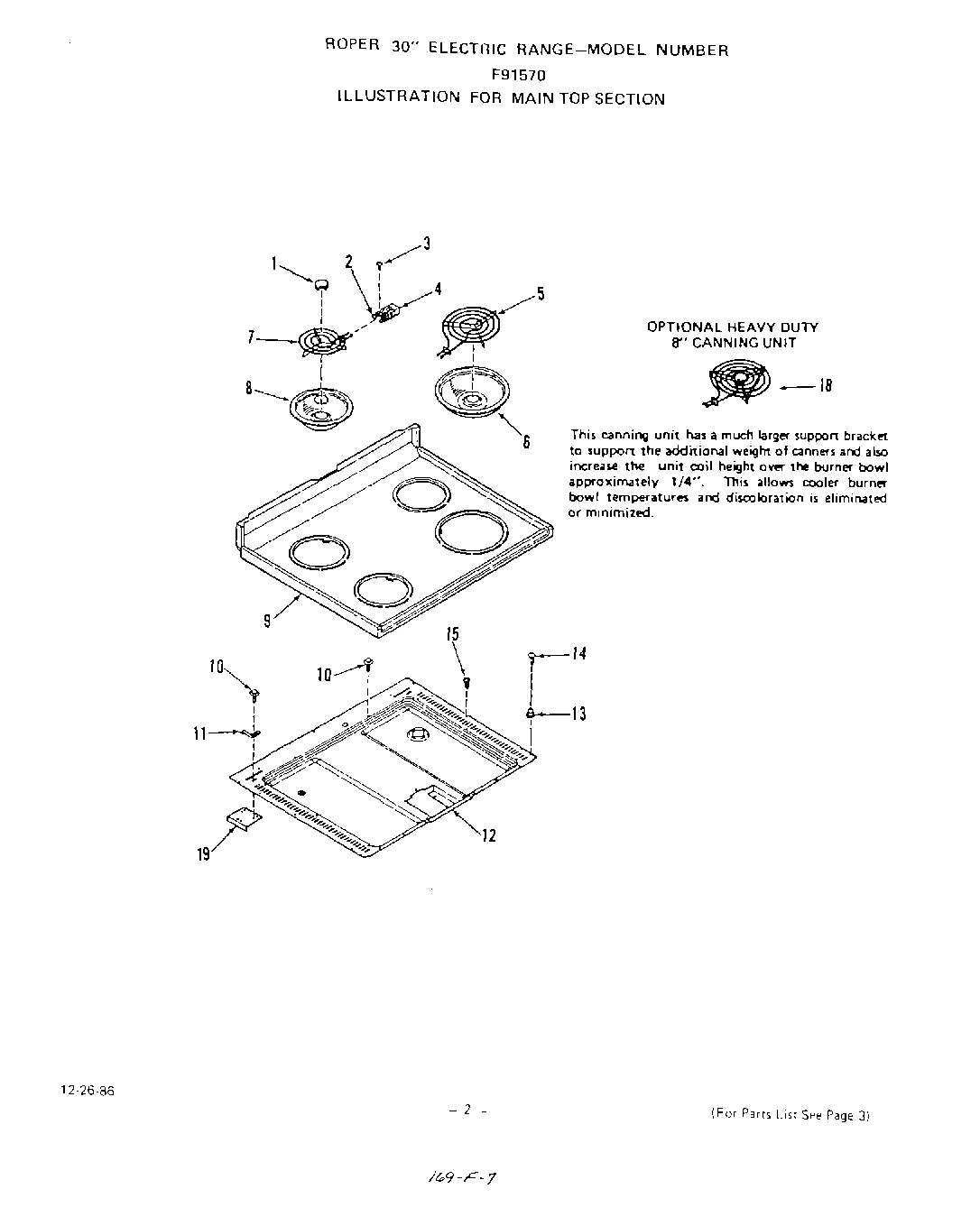

03 - MAIN TOP

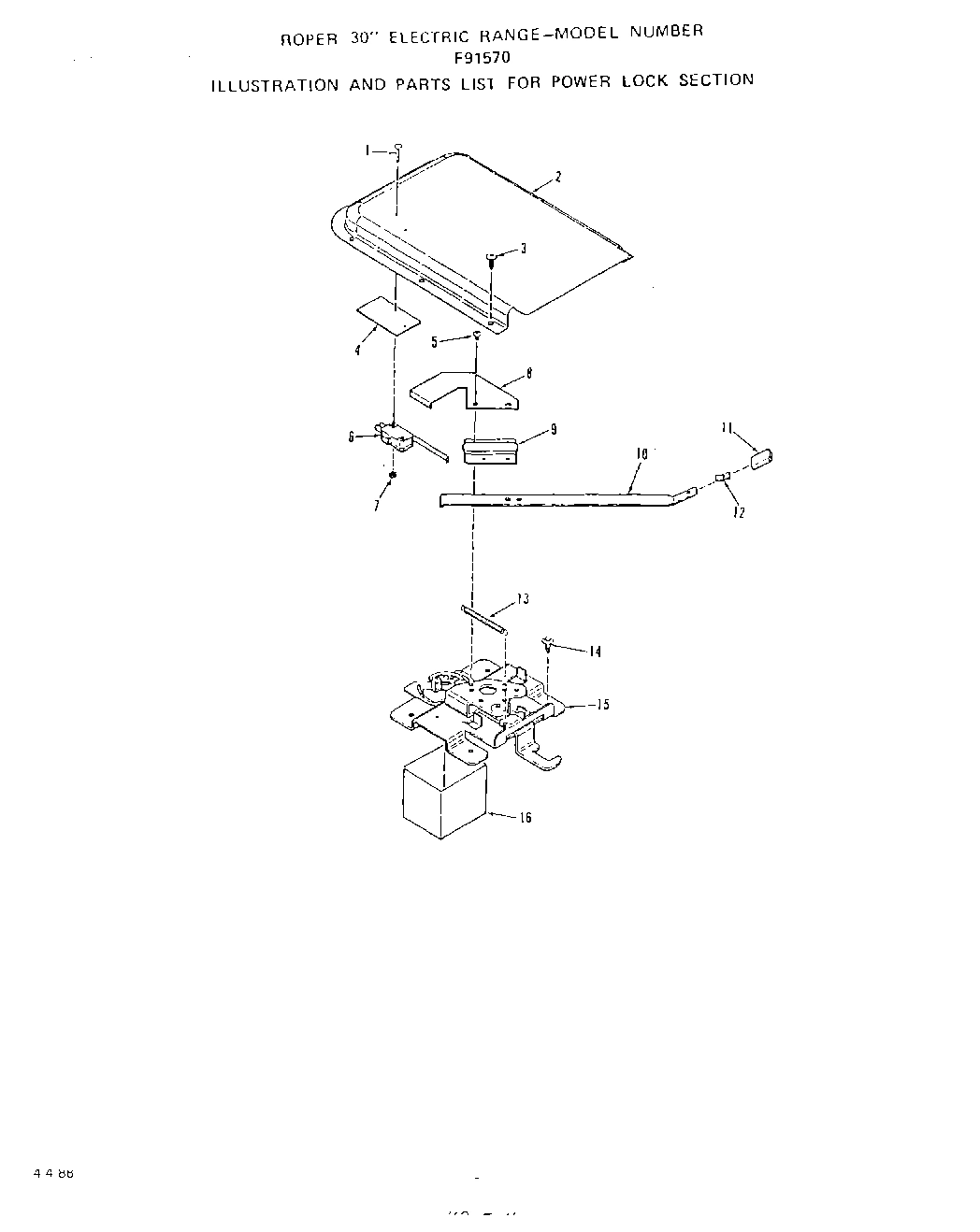

05 - POWER LOCK

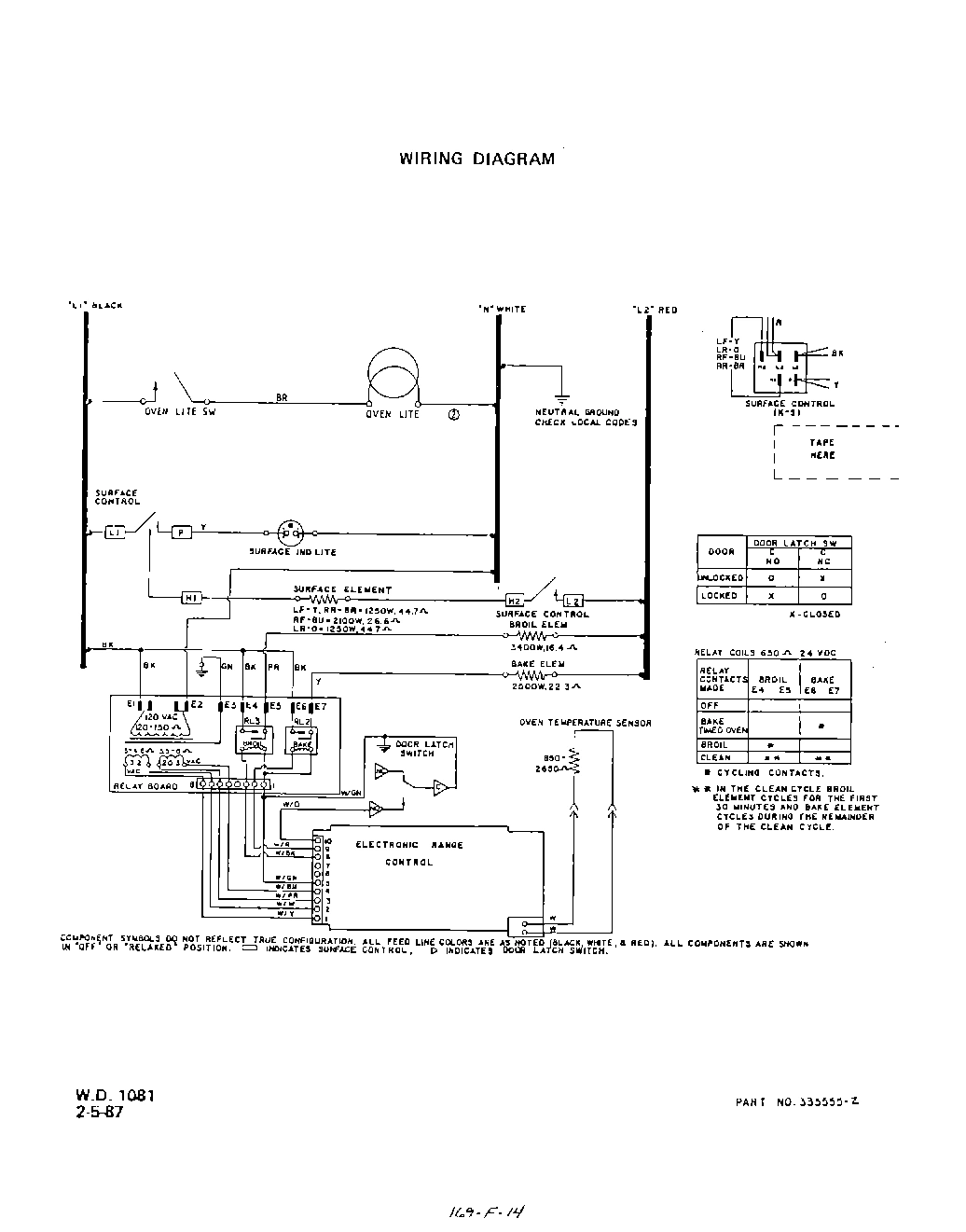

08 - WIRING DIAGRAM

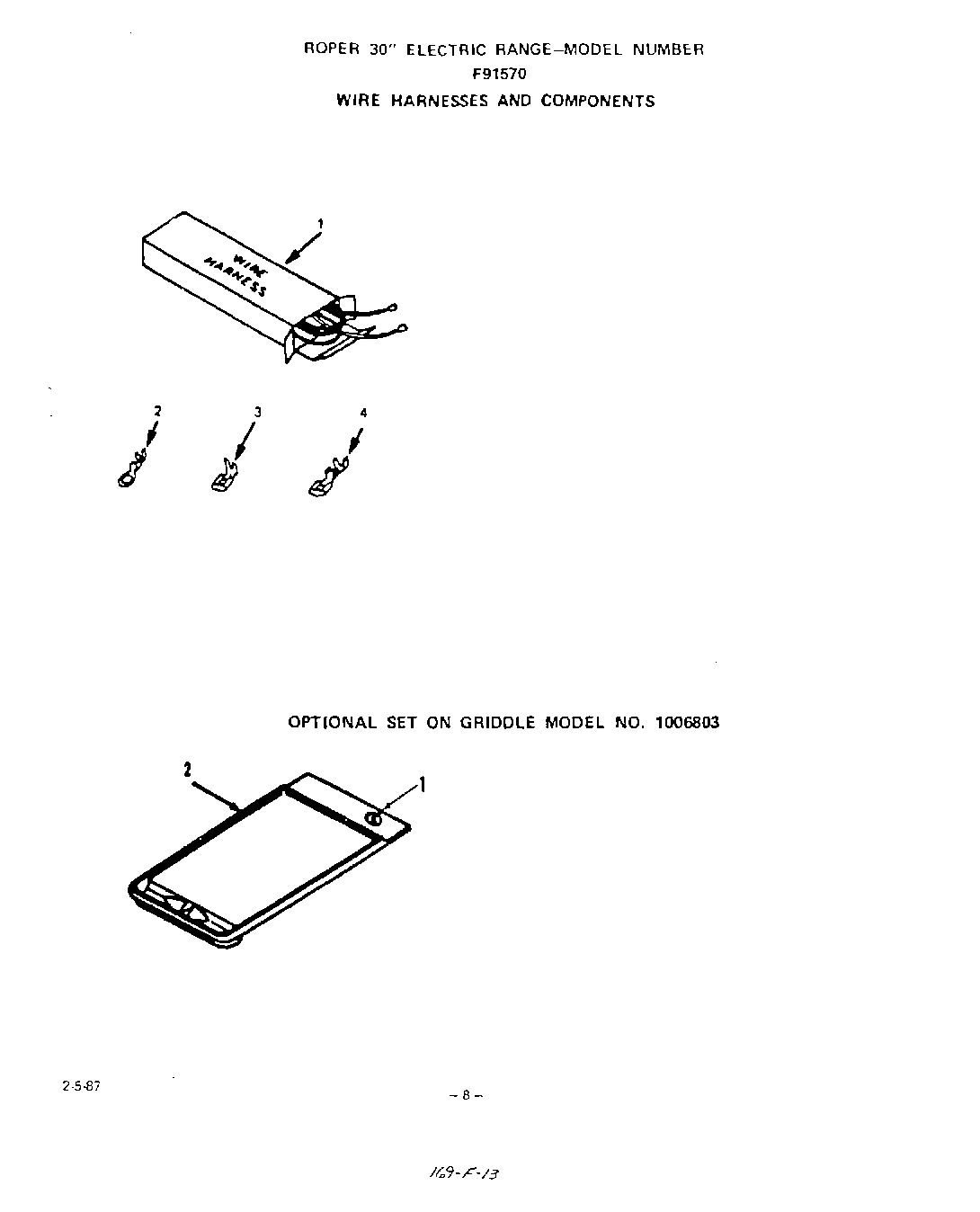

07 - WIRE HARNESS , OPTIONAL GRIDDLE

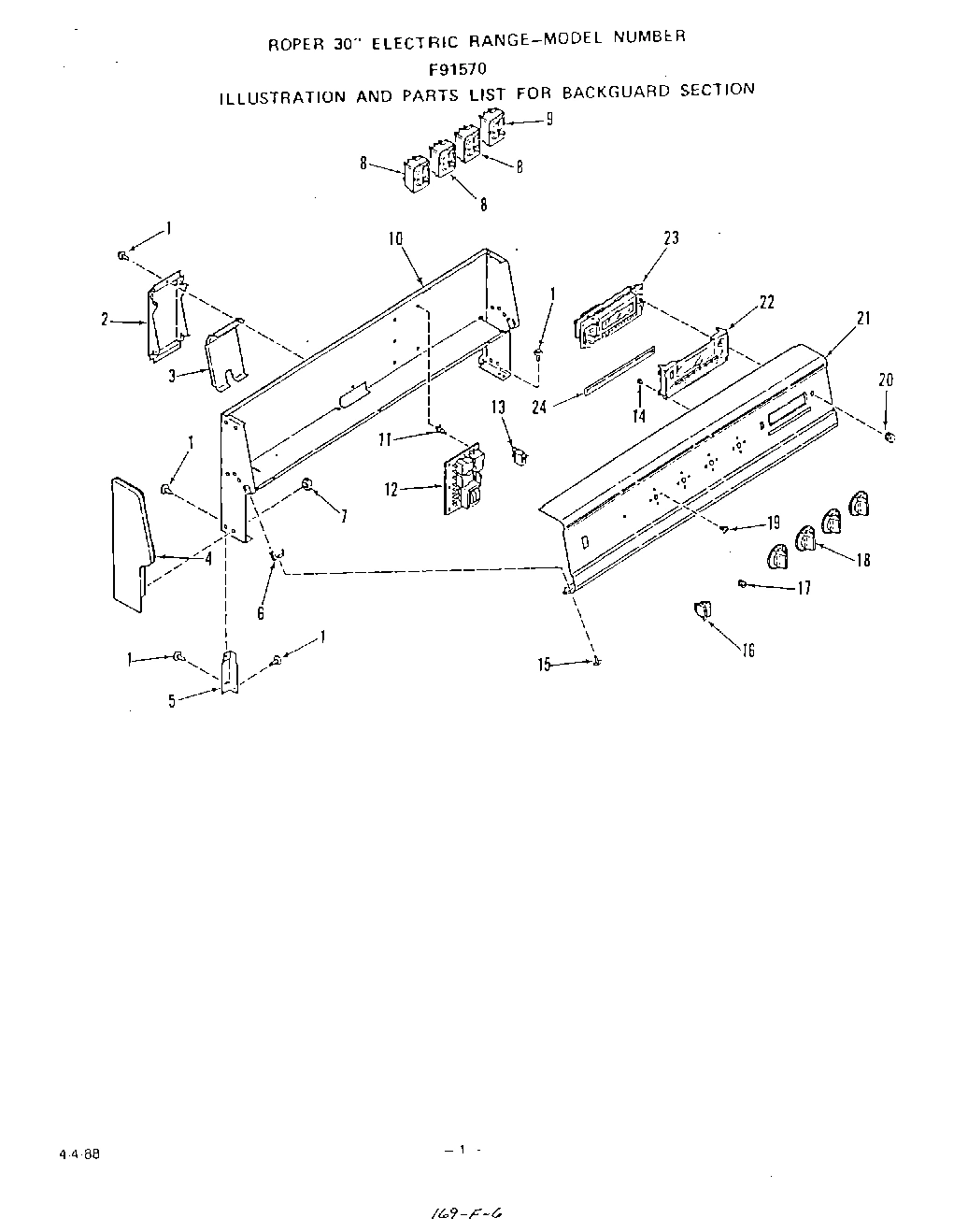

02 - BACKGUARD
Common parts from model Whirlpool F9157^0
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
Plug WPL 335508 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Screw 4-40 x 11/16`` WPL 335942 Contact Us For Availability
1
Wire Harness (Clock/Oven Control) WPL 334927 Contact Us For Availability
1
Wire Harness (Lock Switch) WPL 335588 Contact Us For Availability
1
Wire Harness (Main Top) WPL 336316 Contact Us For Availability
1
Wire Harness (Main) WPL 336380 Contact Us For Availability
1
Thermometer WPL 87996 Contact Us For Availability
2
Wire Shield-Upper WPL 327235 Contact Us For Availability
2
Terminal Block Clip (4 Req) WPL 318872 Contact Us For Availability
2
Cover-Lock WPL 335934 Contact Us For Availability
2
Set-On Griddle WPL 236766 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
2
Wire Raceway WPL 334363 Contact Us For Availability
3
Wire Shield WPL 335724 Contact Us For Availability
3
Insulation WPL 336151 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
3
Screw 10-16x1/2`` WPL 335967 Contact Us For Availability
3
Flag Terminal WPL 238391 Contact Us For Availability
3
Raceway Cover WPL 334364 Contact Us For Availability
4
Insulation-Oven Wrap WPL 334531 Contact Us For Availability
4
Insulation Retainer WPL 326623 Contact Us For Availability
4
Terminal Block w/Wires (4 Req) WPL 318960 Contact Us For Availability
4
Insulator-Switch WPL 329171 Contact Us For Availability
4
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
4
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
4
End Cap (Right) WPL 336103 Contact Us For Availability
4
End Cap (Left) WPL 336104 Contact Us For Availability
5
Junction Block WPL 290105 Contact Us For Availability
5
Outer Panel (White) WPL 333466 Contact Us For Availability
5
Outer Panel (Almond) WPL 333468 Contact Us For Availability
5
8`` Surface Element WPL 325503 Contact Us For Availability
5
Screw (8-32x1/8``) WPL 97411 Contact Us For Availability
5
Backguard Support (Right) WPL 334337 Contact Us For Availability
5
Backguard Support (Left) WPL 334338 Contact Us For Availability
6
Screw 10-32x1`` WPL 313190 Contact Us For Availability
6
Handle WPL 334848 Contact Us For Availability
6
8`` Burner Bowl WPL 304969 Contact Us For Availability
6
Micro Switch WPL 335177 Contact Us For Availability
6
Backguard Clip WPL 337975 Contact Us For Availability
7
Ground Strap WPL 327255 Contact Us For Availability
7
Spacer WPL 107158 Contact Us For Availability
7
6`` Surface Element WPL 325507 Contact Us For Availability
7
Nut-Hex 4-40 WPL 306638 Contact Us For Availability
7
Pal Nut WPL 335776 Contact Us For Availability
8
6`` Burner Bowl WPL 296481 Contact Us For Availability
8
Switch Lever WPL 335929 Contact Us For Availability
8
Infinite Switch (Lt. Frt. or Rt. Rr, Lt. Rr.) WPL 334887 Contact Us For Availability
9
Washer WPL 299425 Contact Us For Availability
9
Lining WPL 331624 Contact Us For Availability
9
Main Top (White) WPL 332043 Contact Us For Availability
9
Main Top (Almond) WPL 332245 Contact Us For Availability
9
Retainer-Latch Handle WPL 333787 Contact Us For Availability
9
Infinite Switch (Rt. Frt.) WPL 334888 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
10
Gasket WPL 292244 Contact Us For Availability
10
Handle-Latch WPL 333792 Contact Us For Availability
10
Backguard Body WPL 334172 Contact Us For Availability
11
Insulator-Service Cord WPL 327242 Contact Us For Availability
11
Hinge-Main Top (Left) WPL 333859 Contact Us For Availability
11
Hinge-Main Top (Right) WPL 334089 Contact Us For Availability
11
Knob-Lock WPL 335738 Contact Us For Availability
11
Circuit Board Spacer WPL 334955 Contact Us For Availability
12
Wire Shield-Lower WPL 327258 Contact Us For Availability
12
Burner Box Bottom WPL 333171 Contact Us For Availability
12
Clip-Knob WPL 328474 Contact Us For Availability
12
Circuit Board w/Relay WPL 338492 Contact Us For Availability
13
Range Service Mounting Plate WPL 327259 Contact Us For Availability
13
Strike WPL 333892 Contact Us For Availability
13
Spring-Lock Handle WPL 313075 Contact Us For Availability
13
Indicator Light WPL 331716 Contact Us For Availability
14
Insulation-Oven Back WPL 308861 Contact Us For Availability
14
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
14
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
15
Main Back WPL 333749 Contact Us For Availability
15
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
15
Latch Asm. WPL 333781 Contact Us For Availability
16
Insulation Retainer-Sides (Lt. or Rt.) WPL 312518 Contact Us For Availability
16
Insulation Retainer WPL 338865 Contact Us For Availability
16
Switch Rocker WPL 334649 Contact Us For Availability
17
Insulation Retainer-Lower WPL 312517 Contact Us For Availability
17
Lens-Indicator Light WPL 331705 Contact Us For Availability
18
Optional 8`` Canning Element (240 Volt) WPL 326786 Contact Us For Availability
18
Infinite Knob WPL 334988 Contact Us For Availability
19
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
19
Burner Box Baffle WPL 335816 Contact Us For Availability
19
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
20
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
20
Clock/Oven Control Knob WPL 339197 Contact Us For Availability
21
Screw WPL 331704 Contact Us For Availability
21
Control Panel WPL 339291 Contact Us For Availability
22
Hinge-Oven Door (Right) WPL 332345 Contact Us For Availability
22
Hinge-Oven Door (Left) WPL 332346 Contact Us For Availability
22
Clock/Oven Control Lens WPL 334898 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 342308 Contact Us For Availability
23
Clock/Oven Control WPL 338692 Contact Us For Availability
24
Body Side (Lt. or Rt.) (White) WPL 333303 Contact Us For Availability
24
Body Side (Lt. or Rt.) (Almond) WPL 333307 Contact Us For Availability
24
Clock Support WPL 338671 Contact Us For Availability
25
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
26
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
27
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
28
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
29
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
30
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
31
Front Panel-Storage (White) WPL 332121 Contact Us For Availability
31
Front Panel-Storage (Almond) WPL 332125 Contact Us For Availability
34
Bake Element (208 Volt) WPL 326364 Contact Us For Availability
34
Bake Element (240 Volt) WPL 326365 Contact Us For Availability
35
Storage Drawer WPL 296150 Contact Us For Availability
36
Oven Body WPL 337043 Contact Us For Availability
37
Vent Tube WPL 333802 Contact Us For Availability
38
Front Frame WPL 333321 Contact Us For Availability
39
Oven Lamp WPL 339665 Contact Us For Availability
40
Bulb Holder WPL 87883 Contact Us For Availability
41
Washer WPL 106462 Contact Us For Availability
42
Wire Shield WPL 330614 Contact Us For Availability
43
Broiler Pan WPL 331592 Contact Us For Availability
44
Insulation - Top & Sides (Front) WPL 316951 Contact Us For Availability
45
Oven Rack WPL 326069 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Support-Broiler Element WPL 339593 Contact Us For Availability
48
Broil Element (240 Vo WPL 334368 Contact Us For Availability
48
WPL 334369 WPL 334369 Contact Us For Availability
49
WPL 229371 WPL 229371 Contact Us For Availability
50
WPL 114989 WPL 114989 Contact Us For Availability
51
WPL 229372 WPL 229372 Contact Us For Availability
52
WPL 334300 WPL 334300 Contact Us For Availability
53
WPL 120855 WPL 120855 Contact Us For Availability
× ![]()
